The perfect solution for load shedding!

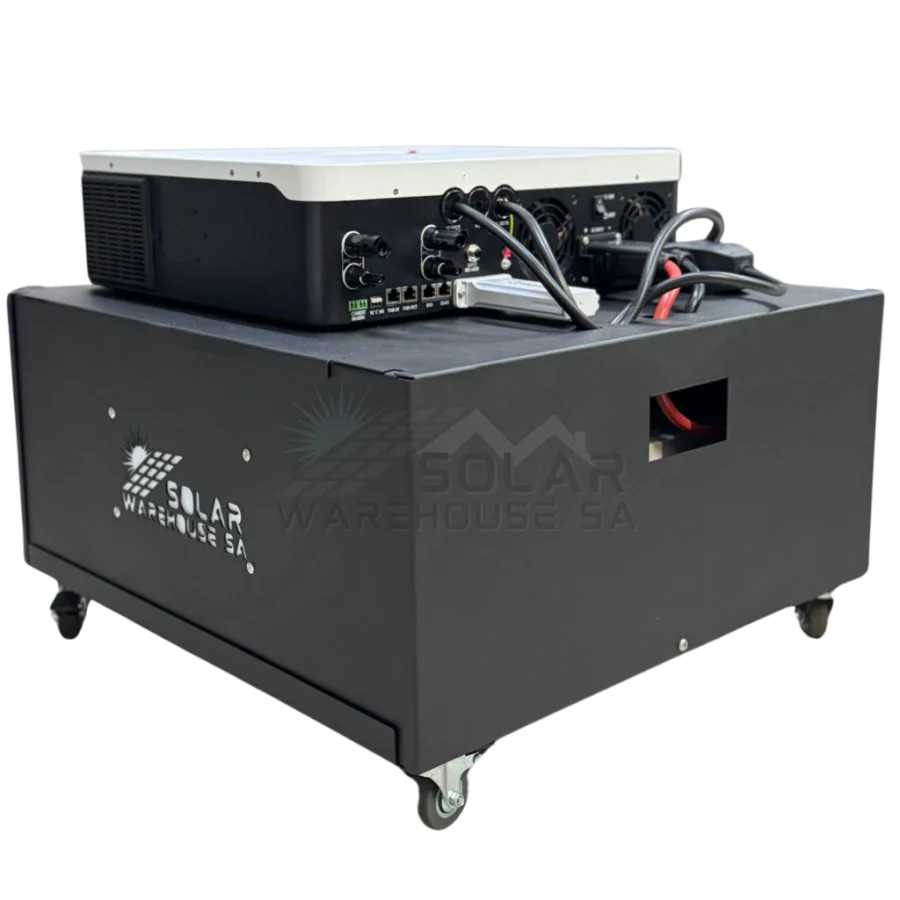

The all-in-one portable plug & play inverter battery trolley system  (Heavy Duty Inverter Trolley) Easy portable compact unit with lock wheels as well as handles to carry the system.

 PLEASE NOTE TROLLEYS TAKE 2-3 HOURS TO ASSEMBLE

What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?

It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers,  chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.

How much battery backup power will I have when the power is off?

If you connect 150w which is usually a TV, Wifi, Lights, etc. This portable system will last 45-50 Hours With a 100% DOD.

Inverter Specifications:

Growatt Off-Grid Solar Inverter 6kW 48VDC SPF6000ES

Features:

· Plug-and-Play terminal for PV port
· Dual MPP trackers
· Maximum PV input voltage up to 500VDC
· Configurable grid or solar input priority
· Parallel for scalability
· Dust-proof filter for harsh environment
· Two AC input terminals with integrated
 transfer switch

WIFI Dongle (INCLUDED)

Inverter Output:

• Battery Voltage: 48VDC
• Battery Type: Lithium/Lead-Acid
• Rated Power: 6000VA/6000W
• Parallel Capability: Yes, 6 units maximum
• Surge Power: 12000VA
• Waveform: Pure Sine Wave
• Transfer Time: 10ms typical, 20ms Max

Solar Charger:

• Maximum PV Array Power: 8000W
• MPPT Range @ Operating Voltage: 120VDC – 450VDC
• Max. Input current per MPP tracker: 16A
• Maximum Solar Charger Current: 100A
• Number of Independent MPP Trackers/
  Strings Per MPP Tracker : 2/1

AC Charger:

• Charge Current: 80A
• AC Input Voltage: 230VAC
• Selectable Voltage Range: 170-280 VAC (For personal Computers) ; 90-280 VAC (For Home Applications)
• Wifi Dongle Included

Battery Specifications:

Features

• Compact Size
• Eco-Friendly
• Long Lifespan
• Built-in BMS
• Can be used in parralel with Ecco W51100 & ELV51100 Battery.

Product Introduction

Up to 15 groups of parallel connections, flexible
capacity expansion

APP can monitor battery SOC, voltage,
temperature, and other statuses

Compatible with mainstream inverters in the
market, providing more options

Built-in BMS provides multiple protection
functions

Specifications :

Model : LW51.2-100
Nominal Voltage : 51.2 V
Rated Capacity  : 100 Ah
Energy : 5.12 kWh
Discharge Ending Voltage : 43.2 V
Charging Limited Voltage : 58.4 V
Max. Charge/Discharge Current : 100 A
Weight Approx. 48 Kg
Dimensions (W*D*H) mm (inches) : 400 *560 *150 mm
Protocol : RS485/RS232/CAN
Max number of parallel connections : 15
Design life : More than 15 years
Cycle Life : More than 6000 cycles @ 80% DOD
IP Class : IP30
Case Material : SPCC
Operating Temperature Charging : 0 to +45℃ Discharging: -10 to +55℃ Storage: -20 to +60℃
Fuction : Bluetooth & WiFi

This all-in-one system Includes:

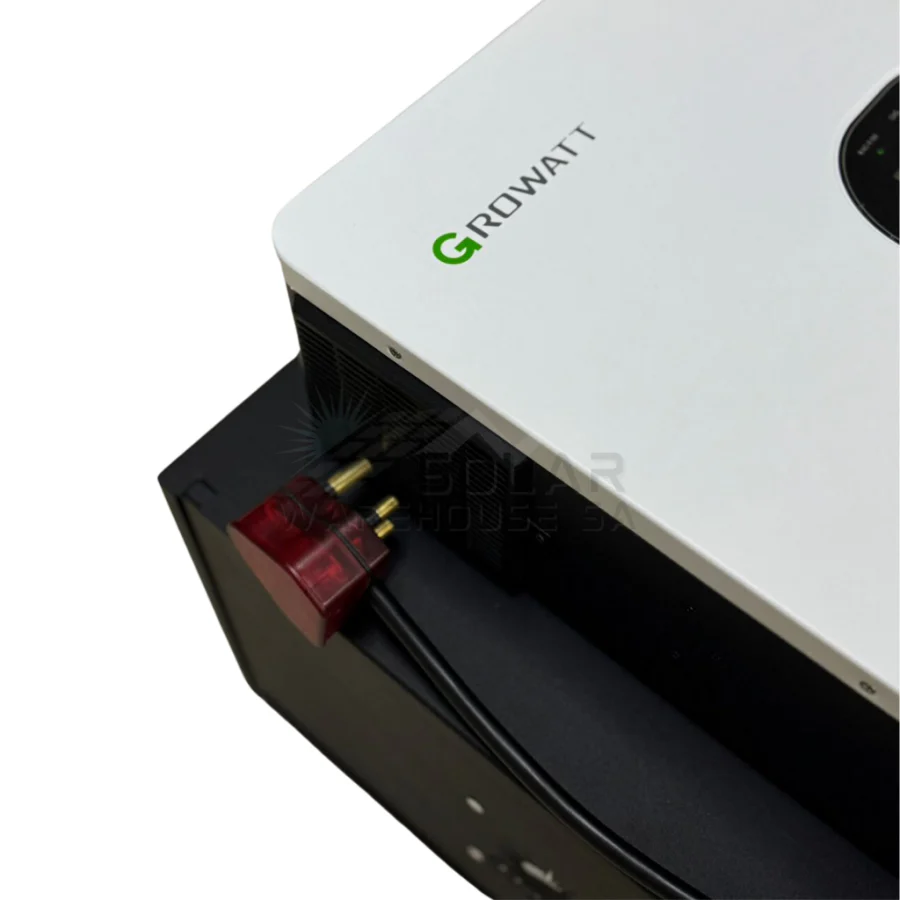

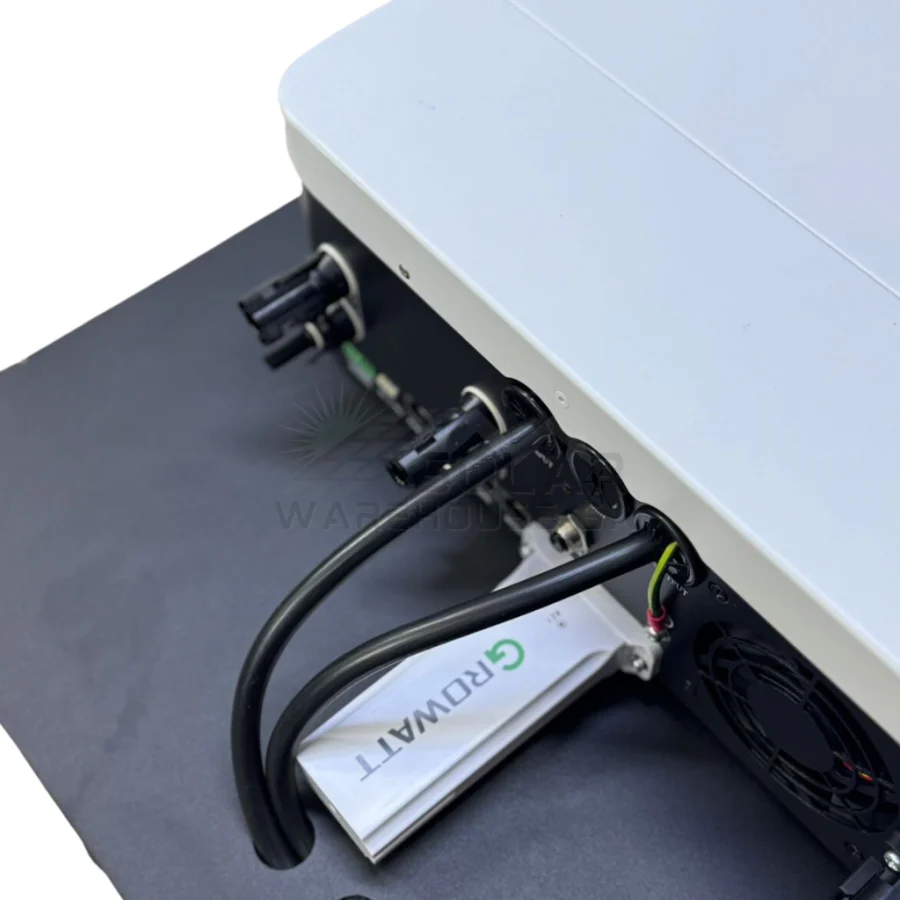

1x GROWATT HYBRID INVERTER 48V 6KW INVERTER PURE SINE WAVE (INCLUDING WIFI) SPF 6000 ES + Wifi Dongle (2 Years Warranty)

1x Leoch 51.2v 100ah 5.12kWh Lithium Battery LW51.2-100 Wall-Mounted

(5 Years Warranty)

1x Battery Fuse

1x 1m Power Cable With Wall Plug

1x 1m Cable With Power Socket

1x Heavy Duty Steel Portable Box With Lock Wheels & Handles
