The perfect solution for load shedding!

The all-in-one portable plug & play inverter battery trolley system  (Heavy Duty Inverter Trolley) Easy portable compact unit with lock wheels as well as handles to carry the system.

 PLEASE NOTE TROLLEYS TAKE 2-3 HOURS TO ASSEMBLE

What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?

It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers,  chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.

How much battery backup power will I have when the power is off?

If you connect 150w which is usually a TV, Wifi, Lights, etc. This portable system will last 45-50 Hours With a 100% DOD.

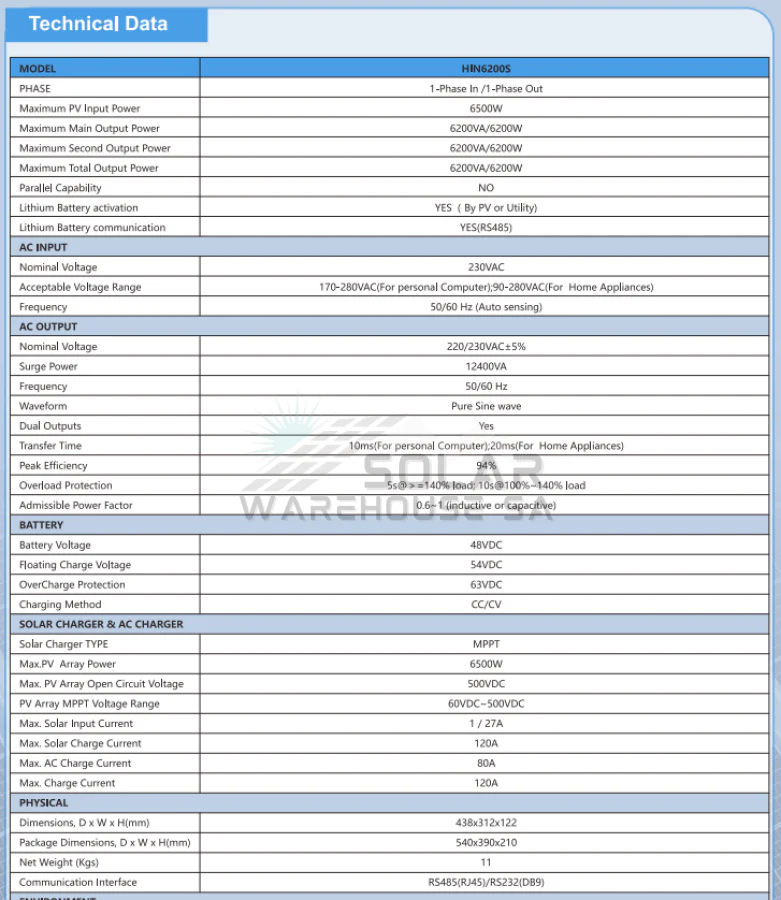

Inverter Specifications:

Features
- Dual output for smart load management
- Lithium battery activation function by PV or Utility - Compatible work with LiFePO4 battery via RS485 - PV Input 500 Vdc Max
- Built-in MPPT 120A
- Capable to work without battery
- Detachable dust cover for harsh environment
- Wifi remote monitoring optional
- Support multiple output priority: UTL, SOL, SBU, SUB - EQ function to optimize battery performance and extend lifecycle

Add A Wifi Dongle:

https://solarwarehousesa.com/products/ecco-hybrid-inverter-wifi-dongle?_pos=1&_sid=71ec01ede&_ss=r

How to maximize battery life:

Keep your inverter system plugged in and switched on, this will keep your batteries at full charge.

Battery Specifications:

Specifications :

Model : LW51.2-100
Nominal Voltage : 51.2 V
Rated Capacity  : 100 Ah
Energy : 5.12 kWh
Discharge Ending Voltage : 43.2 V
Charging Limited Voltage : 58.4 V
Max. Charge/Discharge Current : 100 A
Weight Approx. 48 Kg
Dimensions (W*D*H) mm (inches) : 400 *560 *150 mm
Protocol : RS485/RS232/CAN
Max number of parallel connections : 15
Design life : More than 15 years
Cycle Life : More than 6000 cycles @ 80% DOD
IP Class : IP30
Case Material : SPCC
Operating Temperature Charging : 0 to +45℃ Discharging: -10 to +55℃ Storage: -20 to +60℃

Size Of The Trolley:

50cm (H) x 61 (L)  x 61 (W)

60kg

This all-in-one system Includes:

 1x Hybrid Inverter 6.2KVA 6200W Watt MPPT Ecco (5 Year Warranty)

1x Leoch 51.2v 100ah 5.12kWh Lithium Battery LW51.2-100 Wall-Mounted

(5 Years Warranty)

1x Battery Fuse

1x 1m Power Cable With Wall Plug

1x 1m Cable With Power Socket

1x Heavy Duty Steel Portable Box With Lock Wheels & Handles
