Deye 15KW Three Phase Hybrid Inverter SG05LP3-EU-SM2

Product image 1
Product image 2
Product image 3

Deye 15KW Three Phase Hybrid Inverter SG05LP3-EU-SM2

Deye 15KW Three Phase Hybrid Inverter SG05LP3-EU-SM2

Deye 15KW Three Phase Hybrid Inverter SG05LP3-EU-SM2

ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED

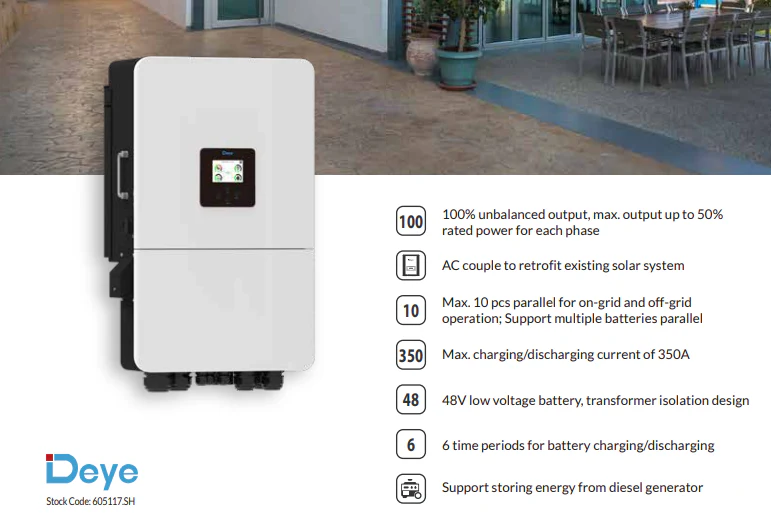

    100% unbalanced output, max. output up to 50%
    rated power for each phase

    AC couple to retrofit existing solar system

    Max. 10 pcs parallel for on-grid and off-grid
    operation; Support multiple batteries parallel

    Max. charging/discharging current of 350A

    48V low voltage battery, transformer isolation design

    6 time periods for battery charging/discharging

    Support storing energy from diesel generator

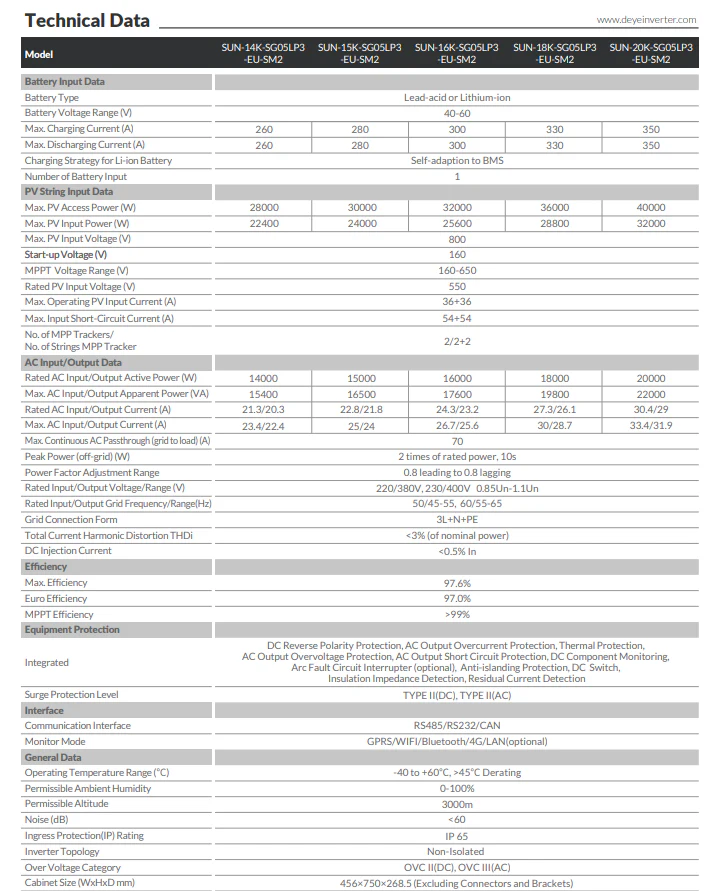

    Technical Data:

    Battery Input Data
    Battery Type : Lead-acid or Lithium-ion
    Battery Voltage Range (V) : 40-60
    Max. Charging Current (A) : 280
    Max. Discharging Current (A) : 280
    Charging Strategy for Li-ion Battery : Self-adaption to BMS

    PV String Input Data
    Max. PV Access Power (W) : 30000
    Max. PV Input Power (W) : 24000
    Max. PV Input Voltage (V) : 800
    Start-up Voltage (V) : 160
    MPPT Voltage Range (V) : 160-650
    Rated PV Input Voltage (V) : 550
    Max. Operating PV Input Current (A) :36+36
    Max. Input Short-Circuit Current (A) : 54+54
    No. of MPP Trackers/Ā No. of Strings MPP Tracker : 2/2+2

    Size :
    456Ɨ750Ɨ268.5 (Excluding Connectors and Brackets)
    51.9

    Warranty

    5 Years/10 Years
    the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy

    • Warranties:Ā All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.

    $798.62

    Original: $2,281.78

    -65%
    Deye 15KW Three Phase Hybrid Inverter SG05LP3-EU-SM2ā€”

    $2,281.78

    $798.62

    Product Information

    Shipping & Returns

    Description

    Deye 15KW Three Phase Hybrid Inverter SG05LP3-EU-SM2

    ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED

      100% unbalanced output, max. output up to 50%
      rated power for each phase

      AC couple to retrofit existing solar system

      Max. 10 pcs parallel for on-grid and off-grid
      operation; Support multiple batteries parallel

      Max. charging/discharging current of 350A

      48V low voltage battery, transformer isolation design

      6 time periods for battery charging/discharging

      Support storing energy from diesel generator

      Technical Data:

      Battery Input Data
      Battery Type : Lead-acid or Lithium-ion
      Battery Voltage Range (V) : 40-60
      Max. Charging Current (A) : 280
      Max. Discharging Current (A) : 280
      Charging Strategy for Li-ion Battery : Self-adaption to BMS

      PV String Input Data
      Max. PV Access Power (W) : 30000
      Max. PV Input Power (W) : 24000
      Max. PV Input Voltage (V) : 800
      Start-up Voltage (V) : 160
      MPPT Voltage Range (V) : 160-650
      Rated PV Input Voltage (V) : 550
      Max. Operating PV Input Current (A) :36+36
      Max. Input Short-Circuit Current (A) : 54+54
      No. of MPP Trackers/Ā No. of Strings MPP Tracker : 2/2+2

      Size :
      456Ɨ750Ɨ268.5 (Excluding Connectors and Brackets)
      51.9

      Warranty

      5 Years/10 Years
      the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy

      • Warranties:Ā All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
