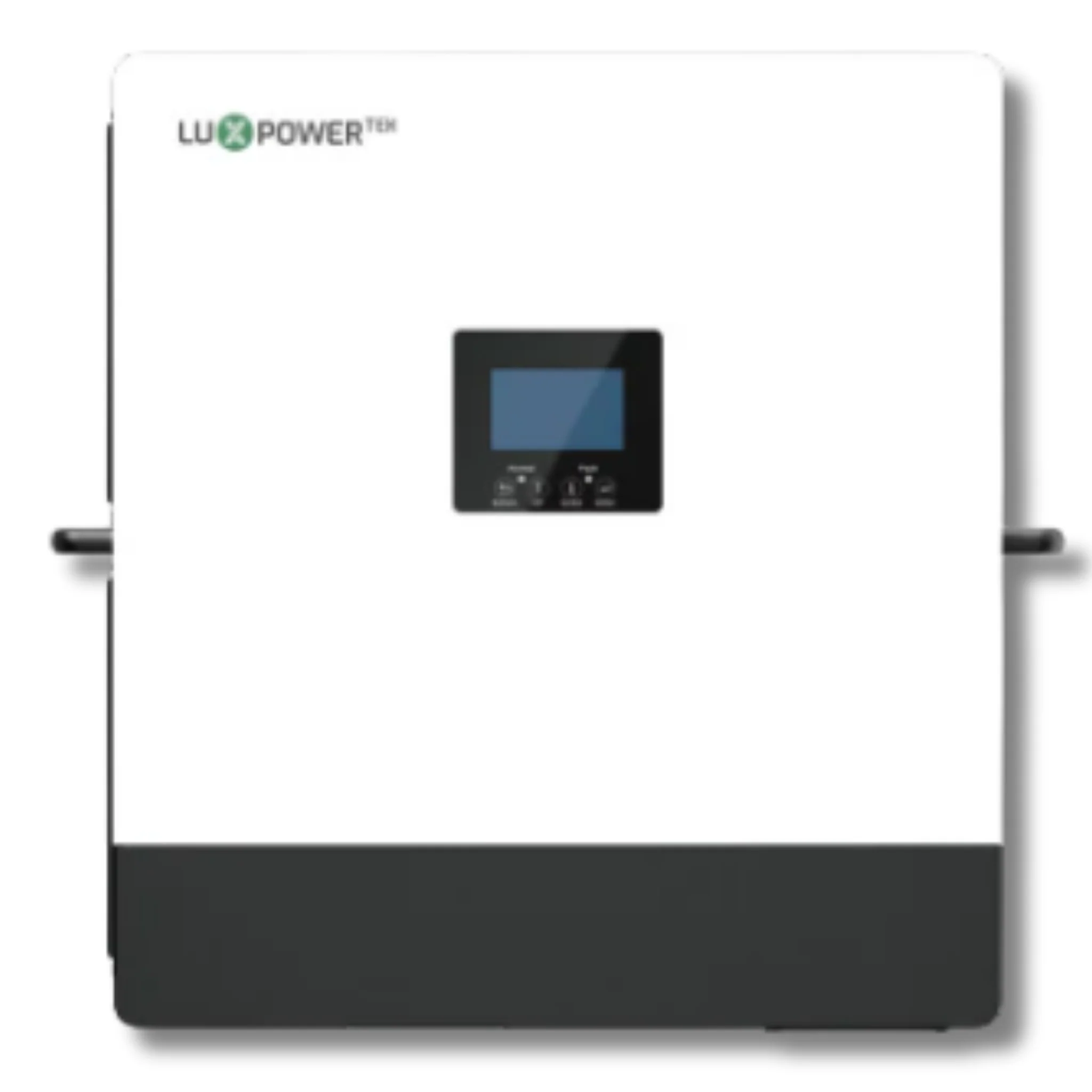

Luxpower 12kW Eco Hybrid Inverter Single Phase CT&WIFI Incl (LUX-SNA2-EU-LT-12K)
Luxpower 12kW Eco Hybrid Inverter Single Phase LXSNAH CT&WIFI Incl (LUX-SNA2-EU-LT-12K)
General Data
• Maximum PV Input: 24kW with 2 MPPT
• Support 16 units in Parallel for On/Off Grid
• Maximum Charging and Discharging Current: 250A
• New Design for Easier Installation
• Support Hybrid Working Modes
• Intelligent Operating Mode to Lower Energy Costs
• Separate Gen Port for
•• Auto Start/Stop
•• Working with the existing Grid-Tied System
•• Smart Load Management
| Weight | 32.50 kg |
|---|---|
| Dimensions | 58.0 × 52.0 × 16.3 cm |

Dimensions ( W*H*D mm ) : 520 X 580 X 163 MM
Weight : 32.5KG
Product Information
Product Information
Shipping & Returns
Shipping & Returns




Luxpower 12kW Eco Hybrid Inverter Single Phase CT&WIFI Incl (LUX-SNA2-EU-LT-12K)
Luxpower 12kW Eco Hybrid Inverter Single Phase CT&WIFI Incl (LUX-SNA2-EU-LT-12K)
Luxpower 12kW Eco Hybrid Inverter Single Phase LXSNAH CT&WIFI Incl (LUX-SNA2-EU-LT-12K)
General Data
• Maximum PV Input: 24kW with 2 MPPT
• Support 16 units in Parallel for On/Off Grid
• Maximum Charging and Discharging Current: 250A
• New Design for Easier Installation
• Support Hybrid Working Modes
• Intelligent Operating Mode to Lower Energy Costs
• Separate Gen Port for
•• Auto Start/Stop
•• Working with the existing Grid-Tied System
•• Smart Load Management
| Weight | 32.50 kg |
|---|---|
| Dimensions | 58.0 × 52.0 × 16.3 cm |

Dimensions ( W*H*D mm ) : 520 X 580 X 163 MM
Weight : 32.5KG
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Luxpower 12kW Eco Hybrid Inverter Single Phase LXSNAH CT&WIFI Incl (LUX-SNA2-EU-LT-12K)
General Data
• Maximum PV Input: 24kW with 2 MPPT
• Support 16 units in Parallel for On/Off Grid
• Maximum Charging and Discharging Current: 250A
• New Design for Easier Installation
• Support Hybrid Working Modes
• Intelligent Operating Mode to Lower Energy Costs
• Separate Gen Port for
•• Auto Start/Stop
•• Working with the existing Grid-Tied System
•• Smart Load Management
| Weight | 32.50 kg |
|---|---|
| Dimensions | 58.0 × 52.0 × 16.3 cm |

Dimensions ( W*H*D mm ) : 520 X 580 X 163 MM
Weight : 32.5KG
