Sunsynk 8Kw Lv Hybrid Inverter 8KW SG01LP1

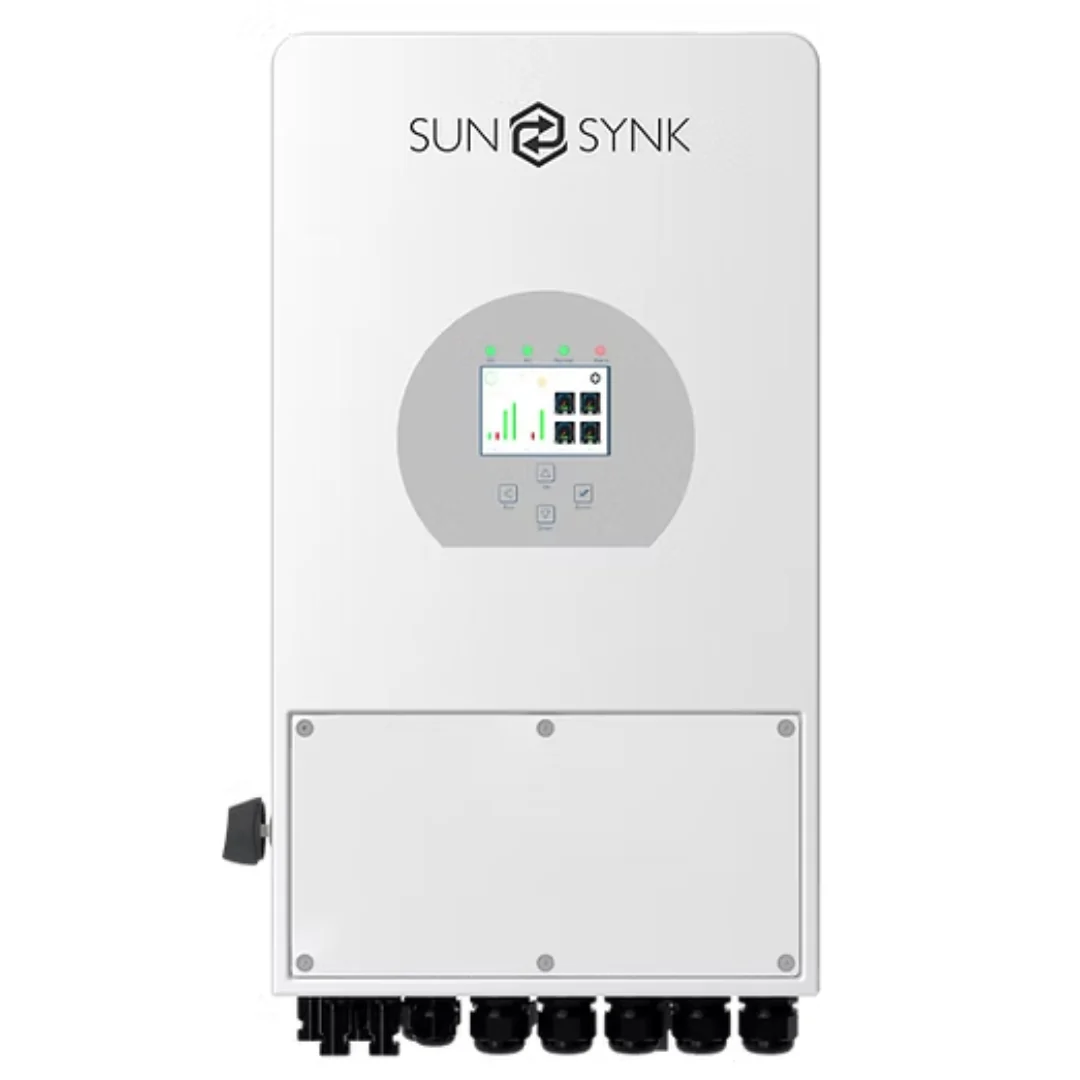

Product image 1

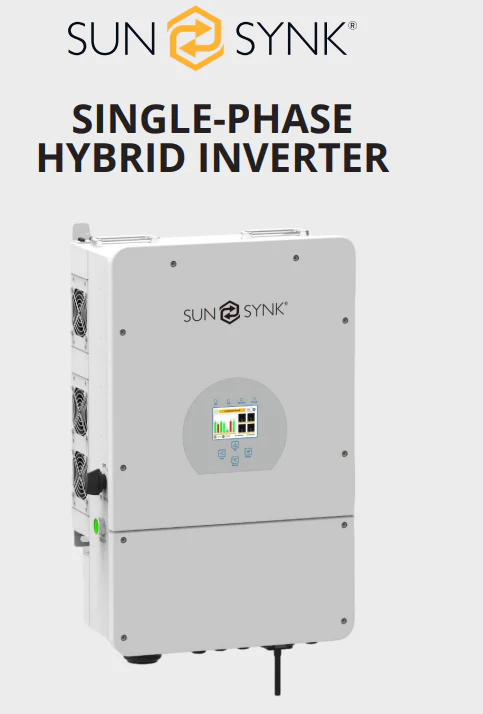

Product image 2

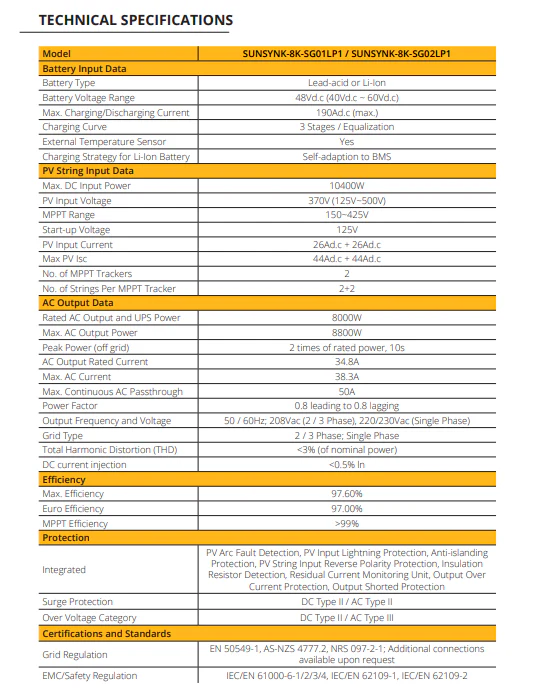

Product image 3
Product image 4

Sunsynk 8Kw Lv Hybrid Inverter 8KW SG01LP1

Sunsynk 8Kw Lv Hybrid Inverter 8KW SG01LP1

Sunsynk 8Kw Lv Hybrid Inverter 8KW SG01LP1

ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED

  • Inputs:
    PV solar
    AC grid power
    Batteries
    Generator

  • Output voltage –
    120/240Vac (split phase),
    208Vac (2/3),
    (single phase) 230Vac

  • Continuous power
    8000W

  • Backup power - 8000W

  • DC – 48V

  • Battery charger – 190A

  • Transfer time <= 10ms

  • Battery charger adjustable for battery bank size and type
    Can charge Lead Acid and Li-ion batteries
    Li-ion battery charging self-adapts to BMS


  • Solar Input
    Max power input – 10400W
    Max V DC input – 370V (100V~500V)
    Max current input – 26A+26A
    MPPTs – 2
    MPPT Range – 125~425V

  • Multi-core processor design and advanced MPPT control

  • High reliability and response speed

  • Programmable export

  • Works parallel on or off-grid

  • Single

  • Multiple operating modes:
    Grid-tie only
    Hybrid
    Off-grid
    Battery only

  • Additional features
    AC couple – For additional PV input
    6 stages time of use settings

  • IP65

General Data
Net Weight : 26.8kg
Warranty : 5 years (10 when installed with a Sunsynk battery)

$512.42

Original: $1,464.07

-65%
Sunsynk 8Kw Lv Hybrid Inverter 8KW SG01LP1—

$1,464.07

$512.42

Product Information

Shipping & Returns

Description

Sunsynk 8Kw Lv Hybrid Inverter 8KW SG01LP1

ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED

  • Inputs:
    PV solar
    AC grid power
    Batteries
    Generator

  • Output voltage –
    120/240Vac (split phase),
    208Vac (2/3),
    (single phase) 230Vac

  • Continuous power
    8000W

  • Backup power - 8000W

  • DC – 48V

  • Battery charger – 190A

  • Transfer time <= 10ms

  • Battery charger adjustable for battery bank size and type
    Can charge Lead Acid and Li-ion batteries
    Li-ion battery charging self-adapts to BMS


  • Solar Input
    Max power input – 10400W
    Max V DC input – 370V (100V~500V)
    Max current input – 26A+26A
    MPPTs – 2
    MPPT Range – 125~425V

  • Multi-core processor design and advanced MPPT control

  • High reliability and response speed

  • Programmable export

  • Works parallel on or off-grid

  • Single

  • Multiple operating modes:
    Grid-tie only
    Hybrid
    Off-grid
    Battery only

  • Additional features
    AC couple – For additional PV input
    6 stages time of use settings

  • IP65

General Data
Net Weight : 26.8kg
Warranty : 5 years (10 when installed with a Sunsynk battery)
