12.8v 100ah 1.28Kwh Ingle Lithium Battery
12.8v 100ah 1.28Kwh Ingle Lithium Battery
12V 100Ah LiFePo4 Single Battery Module is a Lead-Acid/AGM /Gel batter battery replacement.

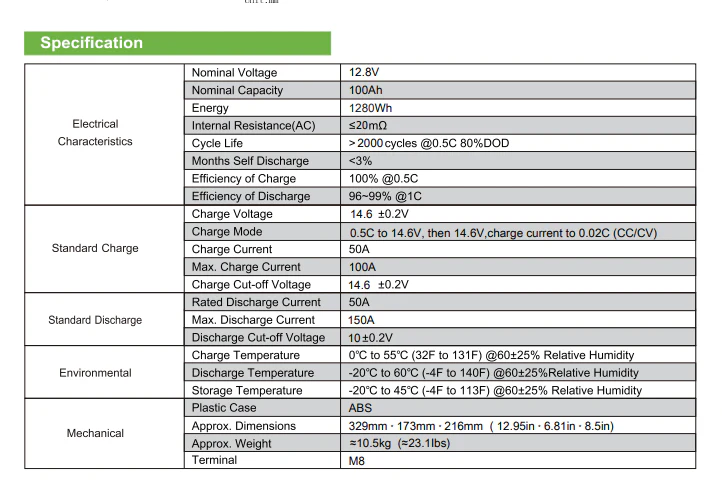

SPECIFICATIONS
- 12V 100Ah LiFePo4 Single Battery Module
- Rated Capacity 1.28kwh
- Nominal Voltage 12.8V
- Charge cut-off voltage 14.6v
- Discharge cut-off voltage 10v
- Max Discharge current 100A
- Design Life: -/+Ā 3-5 Years
- Charging working temperature 0-45C
- Dimensions (LxWxH):Ā 329Ā xĀ 173 x 216 mm
- Weight: Approx.Ā 10.5kg
- Can Be Connected in Series &Ā ParallelĀ
- 4 series 4 parallel
- 3000 cycles @ 80% Depth Of Discharge (DOD)
24Ā Months Warranty
Not recommended for outdoor or water-based applications. Contains internal circuit boards susceptible to water damage, which may affect performance and safety.
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
