Deye SE-F5 5.12KWH 51.2V 100AH

The Deye SE-F5 Battery is a premium lithium iron phosphate (LiFePO₄) energy storage unit engineered for residential and commercial energy systems. With a nominal capacity of 5.12kWh and 51.2V, it delivers reliable performance, advanced safety features, and flexible scalability.

Key Features:

Advanced Battery Management System (BMS): Integrated active fuse protection ensures comprehensive safety.

High Efficiency: Supports up to 1C charge and 1.2C discharge rates, with GaN MOSFETs reducing energy loss by 50%.

Flexible Expansion: Connect up to 32 units in parallel for scalable energy storage.

Durable Design: Operates reliably in extreme temperatures from -20°C to 55°C, with natural cooling.

Smart Monitoring: Supports local and remote monitoring via Bluetooth and app integration.

Optimized Energy Density: Integrated PACK design minimizes line loss and maximizes energy output.

Installation Versatility: Wall-mounted, floor-mounted, and stack-mounted options

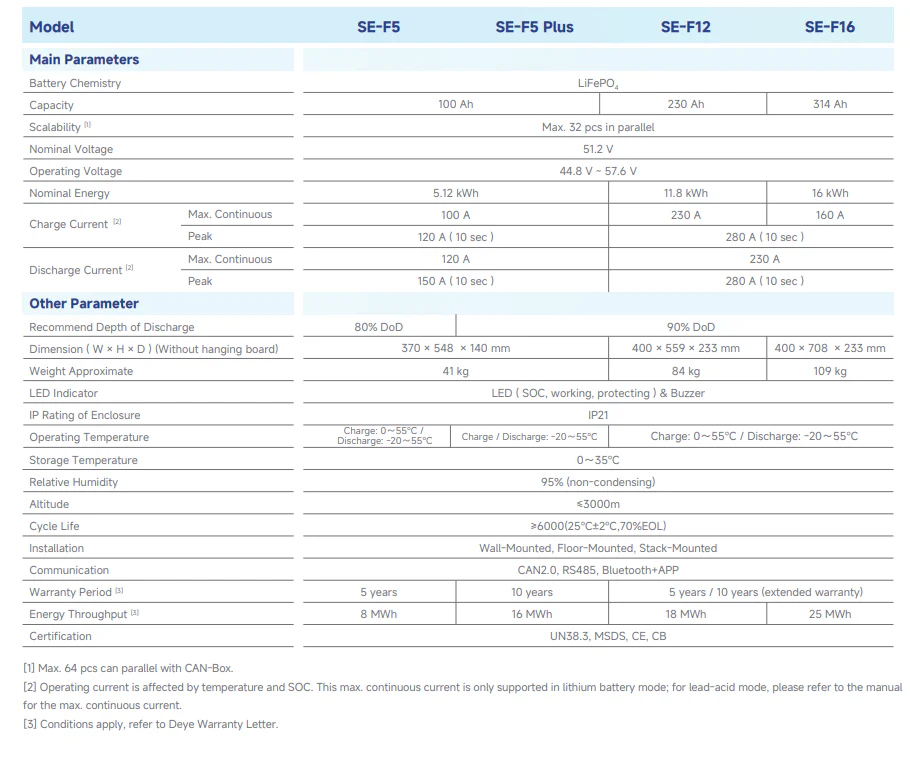

Specifications:

• Model: SE-F5 Plus
• Battery Chemistry: LiFePO4
• Nominal Capacity: 100 Ah
• Nominal Voltage: 51.2 V
• Operating Voltage: 44.8 V ~ 57.6 V
• Nominal Energy: 5.12 kWh
• Scalability: Max. 32 pcs in parallel
• Charge Current: Max 100 A (Continuous), 120 A (Peak for 10 seconds)
• Discharge Current: Max 120 A (Continuous), 150 A (Peak for 10 seconds)
• Depth of Discharge (DoD): Recommended 80%
• Dimension: 370 × 548 × 140 mm
• Weight: Approx. 41 kg
• Communication Port: CAN2.0, RS485
• IP Rating: IP20
• Storage Temperature: 0 to 35℃
• Relative Humidity: 95%
• Cycle Life: ≥6000 cycles
• Warranty : 10 Years
