Luxpower 3.6KVA MPPT Luxpower 7.5 KWh Combo Backup Power Kit
Hybrid Inverter Solar Kit Combo
3.6KVA MPPT Luxpower 7.5 KWh Combo Backup Power Kit
Overcome load shedding with this premium hybrid inverter load-shedding Combo

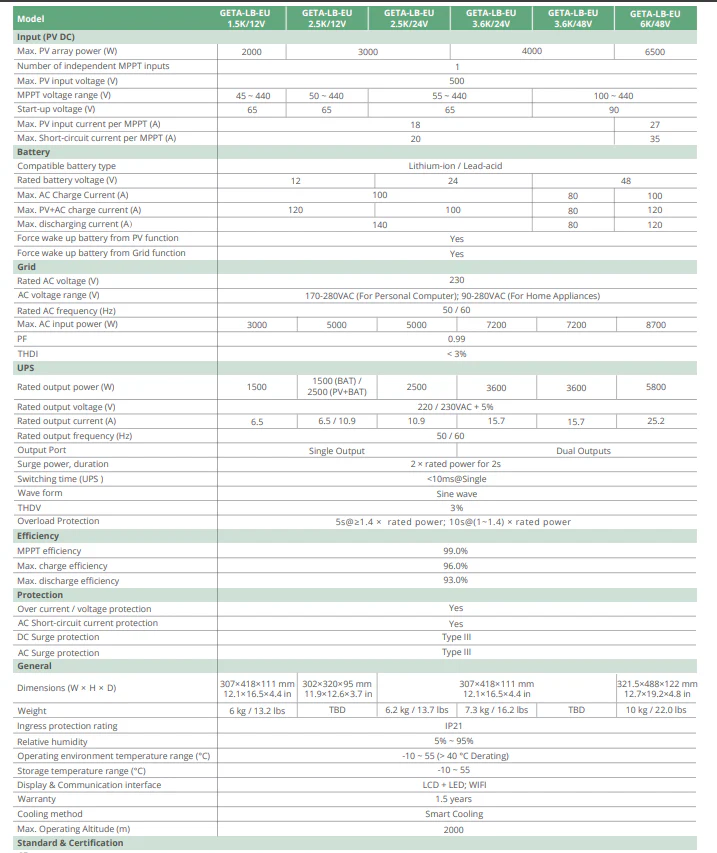

INVERTER SPECIFICATIONS:
Model : GETA 3.6K/24V-120
Remote monitoring possible (WIFI-Dongle Built In)
Max. PV input 500V
Dual outputs for intelligent load management
Battery activation via PV and utility grid
Flexible operation modes to meet diverse energy needs
EQ function for enhanced battery performance
and longevity
Real-time 24/7 remote monitoring
Input (PV DC)
Max. PV array power (W) 4000
Number of independent MPPT inputs 1
Max. PV input voltage (V) 500
MPPT voltage range (V) 100-500
Start-up voltage (V) 55
Max. PV input current per MPPT (A) 18
Battery
Compatible battery type Lithium-ion / Lead-acid
Rated battery voltage (V) 24
Floating Charge Voltage (V) 27
OverCharge Protection (V) 32
Max. PV Charge Current 100
Max. AC Charge Current 60
Max. Charge Current (PV+AC) 100
Force wake up battery from PV function Yes
Force wake up battery from Grid function Yes
UPS
Rated output power (W) 3600
Rated output voltage (V) 120VAC+5%
Rated output current (A) 30
Rated AC output power (W) 3600
General
Dimensions (W × H × D) 307.4 × 418 × 111 mm / 12.1 × 16.5 × 4.4 in
Weight 7KG
Warranty 2 Years
Battery Specifications:
Luxpowertek 25.6V Li-7.5e-7.5kWh LV Lithium battery 24V
Specifications :
Cell Type : LFP
Rated Energy : 7.5kWh
Rated Capacity : 300 Ah
Rated Voltage : 25.6V
Charge / Discharge Current : 140A
Parallel : 35 Units
IP Level : IP 20
Dimension (W × H × D) : 463 X 452 X 225
Weight : 53.5 KG
Communication : CAN/RS485
Remote Maintenance :Flexible remote upgrade, Original firmware backup to prevent upgrade failure
Warranty * : 5 YEARS / 6000 CYCLES
Combo includes:
- 1x Luxpowertek 25.6V Li-7.5e-7.5kWh LV Lithium battery 24V (5 years warranty)
- 1x Luxpower GETA-LB-EU 3.6Kw Hybrid Single Phase Inverter Geta 3.6/24V-120
(2 years warranty) - Battery Cables And Brackets Included
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
