5KW MPPT Deye Load Shedding Dyness 5.12 KWh Combo Backup Power Kit+Wifi
5KW MPPT Deye Load Shedding Dyness 5.12 KWh Combo Backup Power Kit+Wifi
HYBRID INVERTER SOLAR KIT COMBO

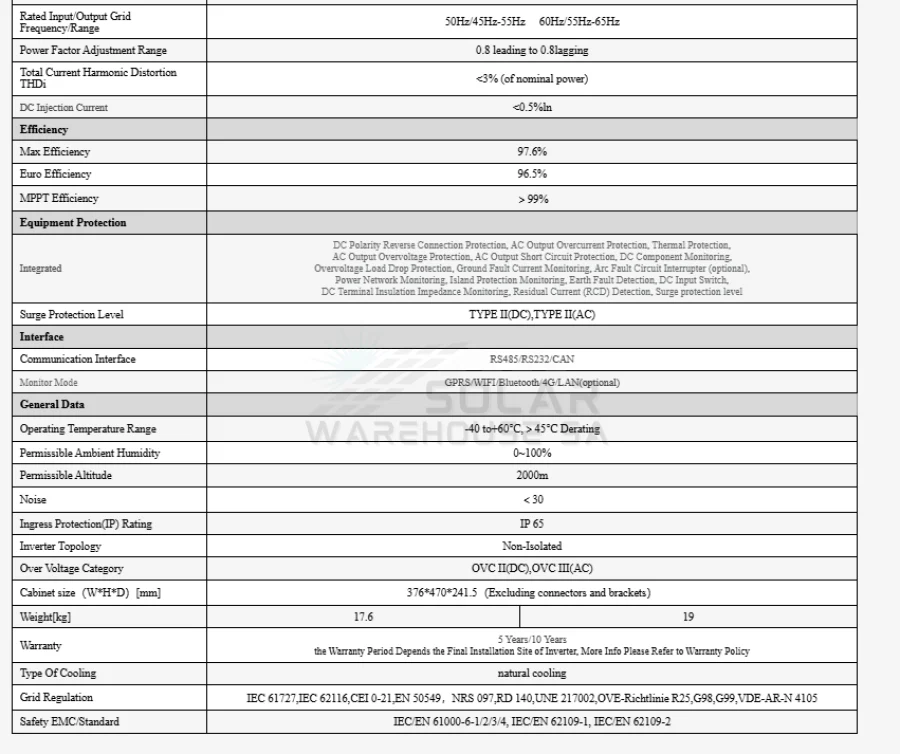

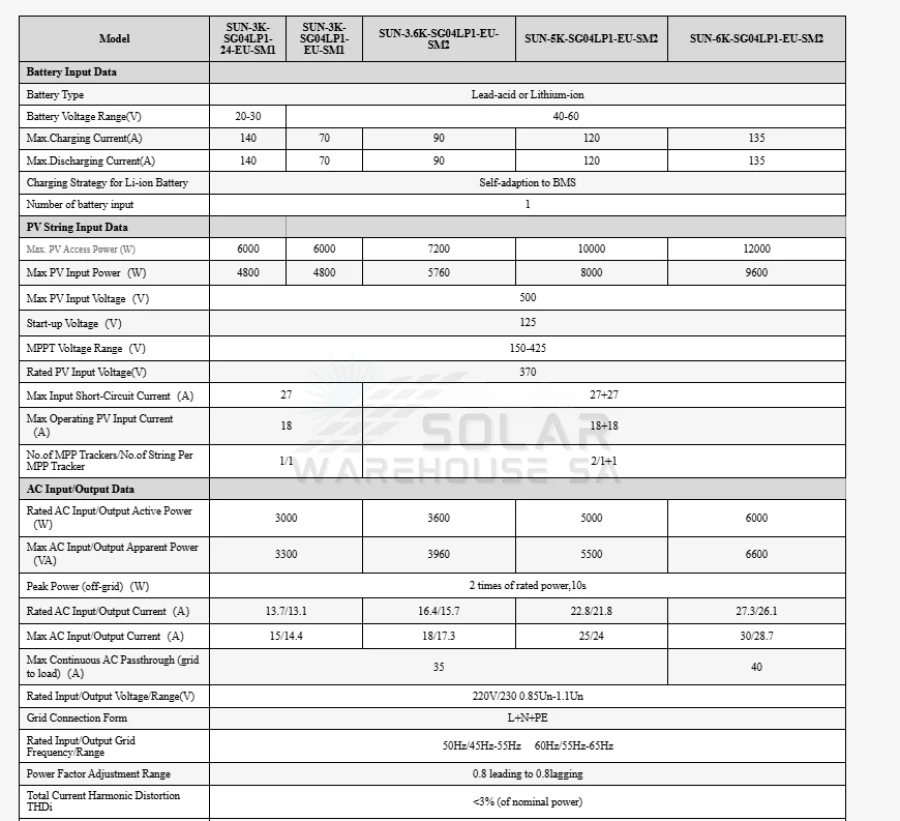

Inverter Specifications:
Deye 5kw hybrid inverter (SUN-5K-SG04LP1-EU-SM2)
Colorful touch LCD, IP65 protection degree AC couple to retrofit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 140A 6 time periods for battery charging/discharging Support storing energy from diesel generator
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range(V): 40-60
Max.Charging Current(A): 120
Max.Discharging Current(A): 120
Charging Strategy for Li-ion Battery: Self-adaption to BMS
PV String Input Data
Max. PV Access Power (W):10000
Max PV Input Power（W）: 8000
Max PV Input Voltage（V): 500
Start-up Voltage（V）: 125
MPPT Voltage Range（V）: 150-425
Rated PV Input Voltage(V): 370
Max Input Short-Circuit Current（A）: 27+27
Max Operating PV Input Current（A）: 18+18
No.of MPP Trackers/No.of String Per MPP Tracker: 2/1+1
| Height (mm) | 470 |
| Width (mm) | 376 |
| Depth (mm) | 241.5 |
| Weight (kg) | 19 |
Battery Specifications:
DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring,and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8 ~ 57.6V |
| Recomended Charge & Discharge C Rate | 0.5C |
| Maximum Discharge C rate | 1C |
| Recommended Charge/Discharge Current | 50A |
| Max Continous Charge Current | 75A |
| Max Continous Discharge Current | 100A |
| Peak Power Charge/Discharge Current | 110A (15s) |
| Depth of Discharge (DOD) | 90% |
| Net Weight | 54 kg |
| Dimension[W*D*H] | 558*545*150 mm |
| Charging Temp. Range | 0~55℃ |
| Discharging Temp. Range | -20~55℃ |
| Communication | CAN/RS485/RS232 |
| Cycle Life[1] | ≥6000 Cycles |
| Protection Level | lP20 |
| Expansion | up to 50 units in parallel |
| Pros | Can be used in both off-grid and hybrid setups, compact design |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/CEI-021 all undergoing |
Combo includes:
-
1x Deye 5kwh Hybrid Inverter Including Wifi Dongle
(5 Years Warranty) -
DYNESS Lithium Battery DL5.0C 5.12 kWh 51.2v Version 2 (7 Years Warranty)
- Battery cables and brackets included
